Aaron Sheets and Plates is a trusted manufacturer and supplier of quality steel plates in Midland, UK. Known for their accuracy and durability, we specialize in Stainless Steel 410 Sheets and Plates, which are known for high corrosion resistance, strength and versatility. Our products cover a wide range of industries, including construction, automotive and manufacturing. With a commitment to quality, competitive pricing, and on-time delivery, Aaron Sheets and Plates is your trusted partner for all metallurgy needs.
Stainless steel 410 sheets and plates are martensitic stainless steel composed primarily of iron, 11.5–13.5% chromium, small amounts of carbon (0.08–0.15%), manganese, silicon, and phosphorus They are highly durable, corrosion resistant a goes down They appear. They are known for their mechanical strength, providing a tensile strength of about 450–700 MPa and a yield strength of 275 MPa, with a tensile strength of 500 HB. These properties make it ideal for applications requiring corrosion resistance, such as molds, valves and automotive parts. Their versatility and durability enhance their technical advantages.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

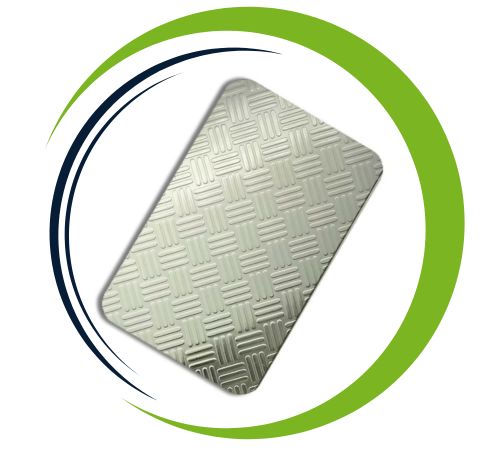

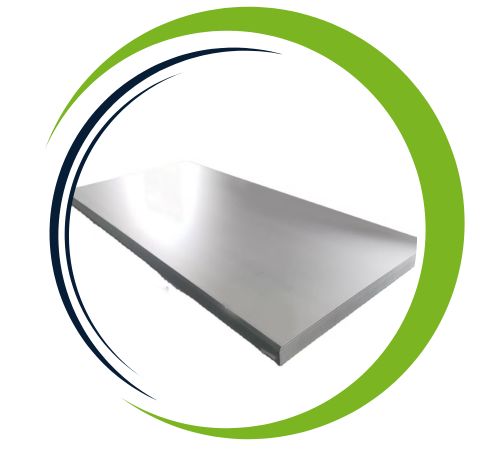

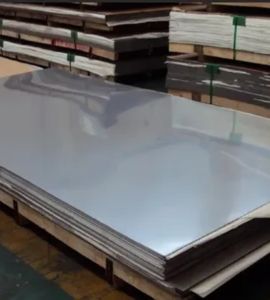

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |

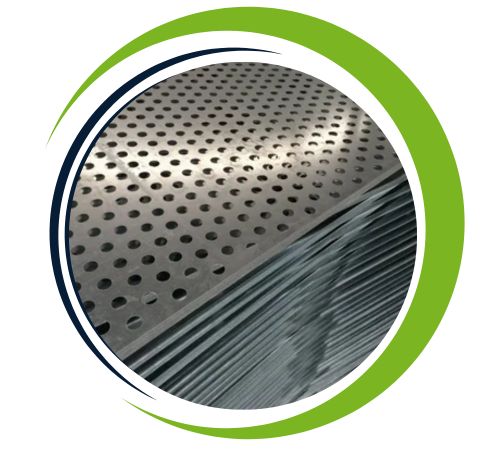

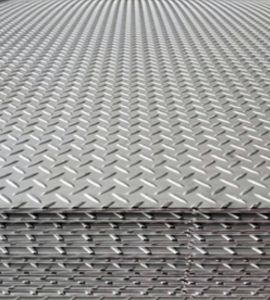

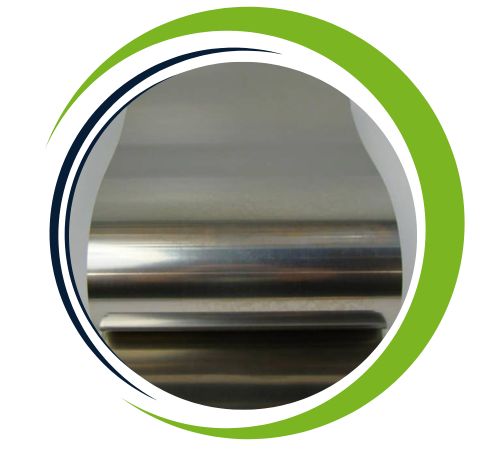

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Cr | Mn | Si | Ni | C | P | S | Fe |
| SS 410 | 11.50 – 13.50 | 0.0 – 1.50 | 0.0 – 1.00 | 0.0 – 0.75 | 0.08 – 0.15 | 0.0 – 0.04 | 0.0 – 0.02 | Balance |
| Tensile Strength Ksi (Mpa) | 0.2% Offset Yield Strength Ksi (Mpa) | Elongation, % in 2″ (51 mm) | Hardening Response HRC | HRB |
| 65 (450) – 74 (510) | 30 (205) – 42 (290) | 20 – 34 | 38-45 | 82-96 |
| Grade | WERKSTOFF NR. | UNS | AISI | BS | SIS | EN | JIS | AFNOR |
| SS 410 | 1.4006 | S41000 | 410 | 410S21 | 2302 | X12Cr13 | 410 | Z10C13/Z13C13 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 410 | 7750 | 200 | 9.9 | 11.4 | 11.6 | 24.9 | 28.7 | 460 | 570 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 410 sheets and plates offer a variety of benefits including excellent hardness and corrosion resistance, making them ideal for hard-wearing components such as cutlery, fasteners and valves especially in soft corrosive environments moderate corrosion resistance due to chromium content. Their high strength and durability enable them to be used in buildings and mechanical components. In addition, they can be heat treated, increasing the mechanical properties. Simple and affordable devices further enhance their appeal, making them a great choice for industries such as automotive, aerospace and construction.
Stainless steel 410 sheets and plates are widely used in applications requiring strength, corrosion resistance and moderate corrosion protection. Typical applications include utensils, surgical instruments and kitchen utensils for hardness and durability. Used in the automotive and aerospace industry for shafts, bolts, valves and other parts. In construction, it is used in building materials and packaging. Their heat resistance makes them suitable for furnace parts and petrochemical applications. In addition, they make a profit on mining and manufacturing machinery and equipment.
